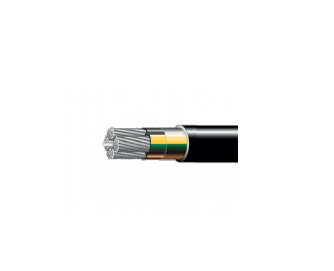

1 kV power cable with XLPE insulated aluminium conductors
Low-voltage cable lines are widely used in low-voltage power distribution systems because of their reliable operation, lack of poles, lack of ground occupation, lack of unsightliness, and less influence from the outside world.
Low-voltage cable lines are widely used in low-voltage power distribution systems because of their reliable operation, lack of poles, lack of ground occupation, lack of unsightliness, and less influence from the outside world.
Application
Fixed indoor, outdoor and underground installations.
Standards
HD 603-5D SI, IEC 60502-1,
IEC 60332-1 Cat. B. HD 308 S22002
Certificate/approval
CE
Rated voltage
U/U = 0,6/1 kV
U/12kV
Temperature range
Highest permissible conductor temperature:
-in continuous operation: 90°C
-in a short circuit (duration up to 5 s) : 250°C
Lowest recommended temp, during laying: -15°C

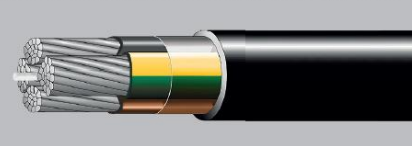

Construction
Conductor:
16 mm2 - solid round aluminium conductor;
25-300 mm2 - stranded, compacted and annealed sector shaped aluminium conductor
Insulation: black XLPE compound
Laying up: four insulated conductors stranded together
Sheath: black PVC; plastics are UV(,) resistible and they don't need extra protection against sunlight.
Identification of cores
Phase conductors: brown, black, grey
PEN conductor: yellow-green
Marking
Manufacturer; product name, date of manufacture, outer sheath material designation, meter marking.
